8.000" X 8.000" XYR Locating System

Base Plate Size: 12.000" Y by 12.000"X
Top Plate Size: 8.000" Y by 8.000" X
X Movement: 1.000"
Y Movement: 1.000"
R Movement: 15 Degree
Top Plate Pattern: 1.000" X 1.000"
Mounting Pattern 8.000" Y  by 10.000" X
Drawing
Made to fit
Franklin  Model 1020, 2400 and 5100
 Kensol/Franklin Model 500, 1000 and 2500

 Custom Mounting patterns are available at no charge

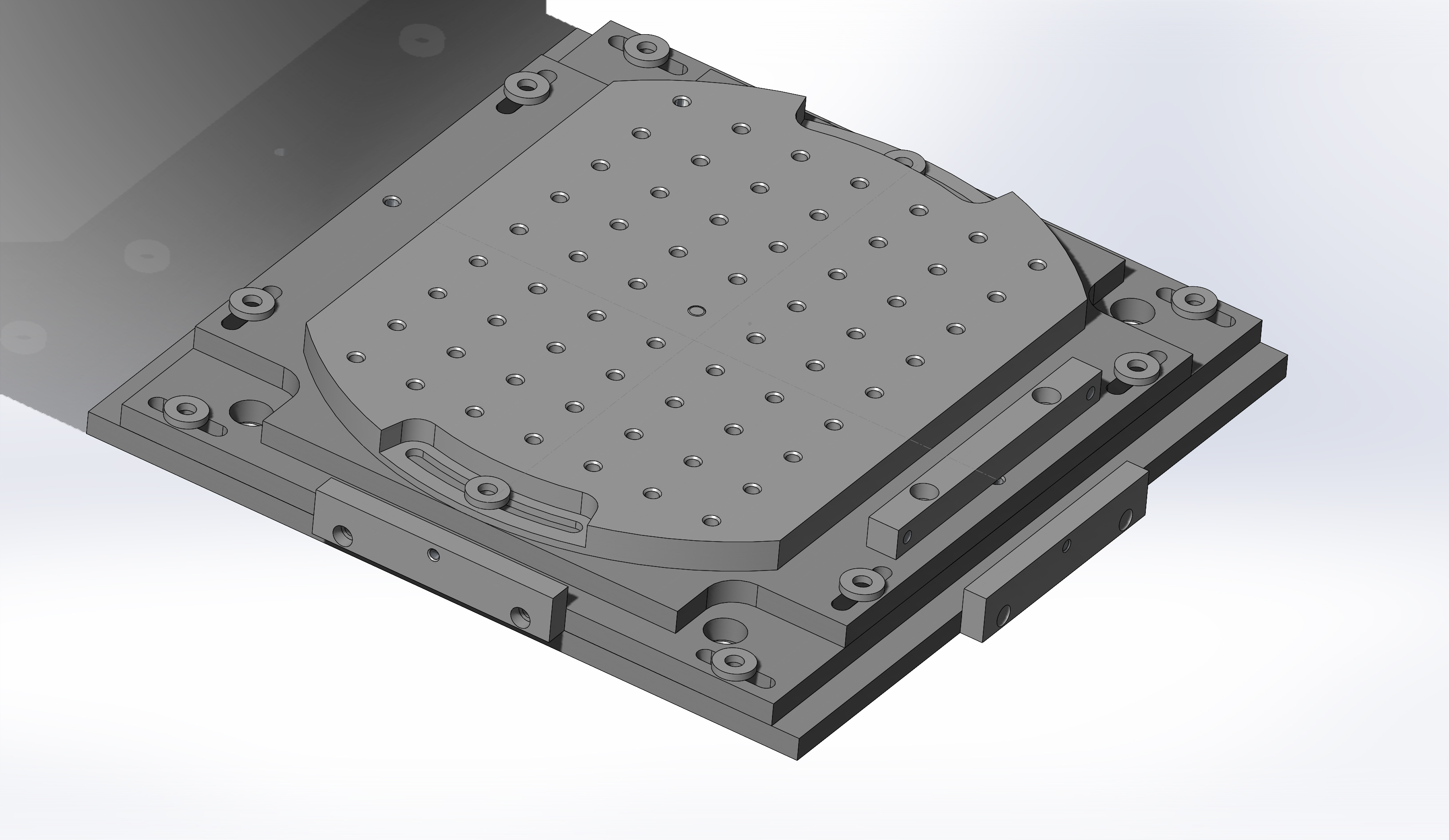

8.000" X 8.000" XYR Locating System With Adjustment Screws
PDF Drawing
