AFM Engineering> Hot Stamping> Foil Feeds> 2"X4 3"X6" No Drive
Hot Stamping Machine
Foil Feed Systems 2"X4" 3"X6"

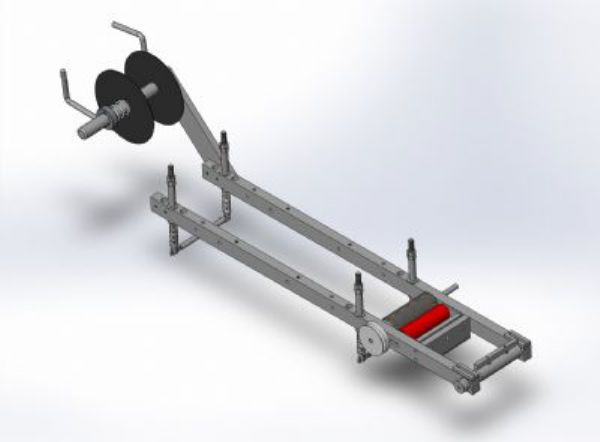

Foil Feed, 2"X4" 3"X6" No Drive
AFM Part Number 103587
Drawing Number 155100
View PDF
QtyDescriptionDrawing NumberAFM Part#Picture(s)Drawing(s)EDrawing(s)AssemblySpare
1Foil Feed, Knurled roller pin (drive side)15000-003102953View PDF
1Foil Feed, Knurled roller pin (wheel side)15000-004102954View PDF
1Foil Feed, Large Pulley15000-002100249View PDF
2Foil Feed, Rail, 33" 15710-002 104059View PDF
1Foil Feed, Roller Pressure Assembly, 2X4 3X6 15510-000 103488View PDFYES
1Foil Feed, Roller, Metal, Knurled, 2"X4", 3"X6" Heater Head15310-001 103142View PDF
1Foil Feed, Roller, Rubber, 2"X4", 3"X6" Heater Head15321-000 102593View PDFYESYES
1Foil Feed, Supply Assembly Single 2X4, 3X615900-000-001103814YES
2Foil Feed, Take Up Keeper 15000-001 100428View PDF
1Foil Feed, Takeup Assembly 2X4 3X6 15410-000 103275View PDFEDrawingYES

2 X 4 and 3 X 6
6 X 8 and 6 X 12
10"X 15"
12 X 18 and 12 X 24
