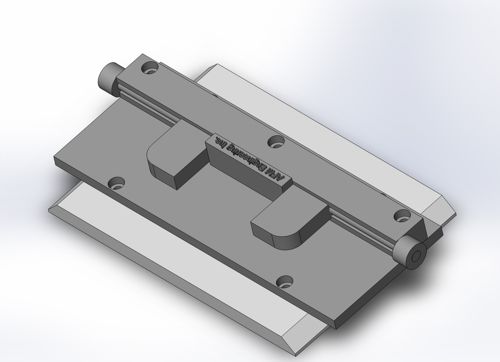

Dovetail with Self Centering Type Chase
Self Centering Type Chase
The Dovetail with Self Centering Type Chase will accept individual pieces of type.
 Once the type in inserted into the type chase it is centered by tighten the self centering jaws.
This Chase can be used with dies mounted on blocks.
This Chase can be used with both Dies mounted on blocks and type as long as the die and block are type high. (23.3 mm or .9186 inch)
