Hot Stamping Machine Control Box
Head Only Installation Page 8
Previous Page  Next Page
True_Dwell_Switch

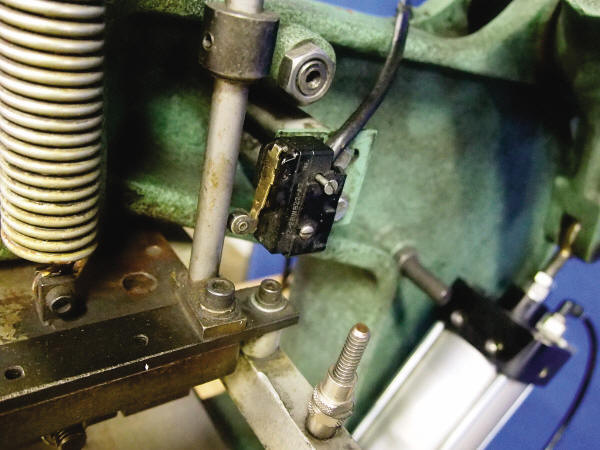

Remove old True Dwell Switch and replace with new Switch and cable provided.
Plug the True Dwell Swtich Plug into the new Box.
Make sure the True Dwell Switch is making at the end of the head stroke.
