AFM Engineering> Hot Stamping> Hot Stamping Information> Hot Stamping Die Artwork and Mounting Solutions> Hot Stamping Die Artwork to be mounted with Bolts> Die Template
Hot Stamping Die Artwork to be mounted with Bolts
Step 2. Select Die Template that matches dovetail.
<<Previous Page 2 of 4 Next>>

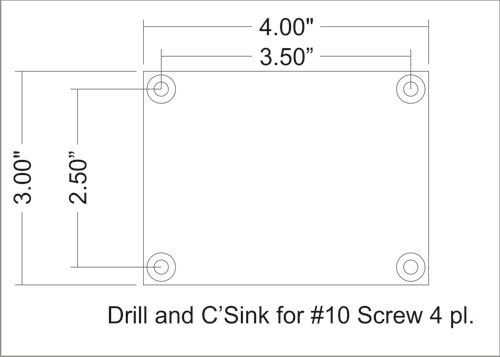

3X4_Template Using your Vector Artwork Drawing Program open the Die Template that has the same Hole patters as your dovetail. The square part the template should be in the center of your page. If you are using a 8 1/2 X 11 page when you select the square the position should be 4 1/4 X 5 1/2.

If you don't have the correct template you can create it or download it. (see below) If you need a template that is not listed call or e-mail us and we will make one for you.
(714)547-0194 cirwin@afmeng.com
Download Die Templates
 To download either Shift-Click or Right-Click on the link,
 then select either save link or save target depending on the browser.
Die Size Encapsulated PostScript Corel Draw Adobe Illustrator
1" X 2 " 1X2_Die_Template.eps 1X2_Die_Template.cdr 1X2_Die_Template.AI
1.5" X 2.5 " 1.5X2.5_Die_Template.eps 1.5X2.5_Die_Template.cdr 1.5X2.5_Die_Template.ai
2" X 3 " 2X3_Die_Template.eps 2X3_Die_Template.cdr 2X3_Die_Template.ai
2.5" X 3.5 " 2.5X3.5_Die_Template.eps 2.5X3.5_Die_Template.cdr 2.5X3.5_Die_Template.ai
3" X 4 " 3X4_Die_Template.eps 3X4_Die_Template.cdr 3X4_Die_Template.ai
3.5" X 4.5 " 3.5X4.5_Die_Template.eps 3.5X4.5_Die_Template.cdr 3.5X4.5_Die_Template.ai
4" X 5 " 4X5_Die_Template.eps 4X5_Die_Template.cdr 4X5_Die_Template.ai
4.5" X 5.5 " 4.5X5.5_Die_Template.eps 4.5X5.5_Die_Template.cdr 4.5X5.5_Die_Template.ai
5" X 6 " 5X6_Die_Template.eps 5X6_Die_Template.cdr 5X6_Die_Template.ai
5.5" X 6.5 " 5.5X6.5_Die_Template.eps 5.5X6.5_Die_Template.cdr 5.5X6.5_Die_Template.ai
6" X 7 " 6X7_Die_Template.eps 6X7_Die_Template.cdr 6X7_Die_Template.ai
8" X 8 " 8X8_Die_Template.eps 8X8_Die_Template.cdr 8X8_Die_Template.ai
9" X 8 " 9X8_Die_Template.eps 9X8_Die_Template.cdr 9X8_Die_Template.ai
10" X 8 " 10X8_Die_Template.eps 10X8_Die_Template.cdr 10X8_Die_Template.ai
11" X 8 " 11X8_Die_Template.eps 11X8_Die_Template.cdr 11X8_Die_Template.ai
12" X 8 " 12X8_Die_Template.eps 12X8_Die_Template.cdr 12X8_Die_Template.ai

Dovetail with Hole Pattern
Die Template
Die Template with Artwork
Die Mounted to Dovetail
