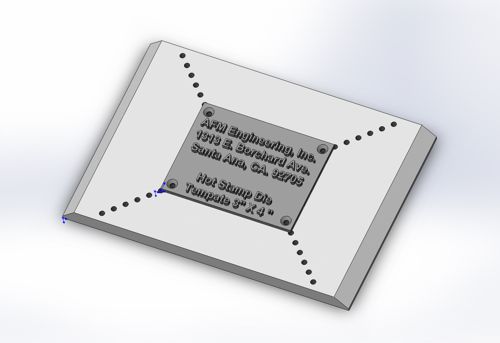

	Hot Stamping Die Artwork to be mounted with Bolts Step 4. Bolt Die to Dovetail. Insert Dovetail in to machine. <<Previous Page 4 of 4 When the die comes in from the die maker you should be able to bolt it right to your dovetail.  Then slide the dovetail into your hot stamping machine.  Heat up your machine and start stamping. We Normally use the following Screws: Black-Oxide Alloy Steel Hex Drive Flat Head Screw, 10-32 Thread Size, 1/4" Long McMaster Carr Part Number 91253A002 We also use Bostik Never-Seez Regular Grade on the threads. McMaster Carr Part Number 1820K23 Dovetail with Hole Pattern Die Template Die Template with Artwork Die Mounted to Dovetail
