Hot Stamping Bags

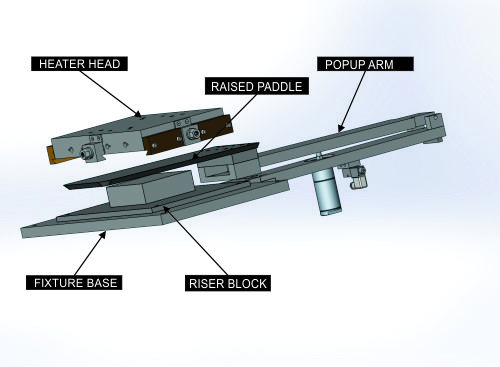

Bag Popup Fixture Mounted in Back with Raised Paddle for Front Bag Loading
Bag Down
Untitled 1
The Raised Paddle System uses the same Paddle as the Paddle System and adds a Riser Block under the Paddle.
This system is slightly more that the Paddle System. Some drawbacks of the Paddle System have been eliminated.

The Raised Paddle System is the easier to make ready than the Paddle System.  It requires make ready under the Paddle for the gussets
but not the bottom of the bag if the bottom of the bag is below the raiser block. It also has no problem with bags with handles or cords.
The handles and cords fall below the Riser Block.
More Information About Raised Paddle System
