Basic Dovetail

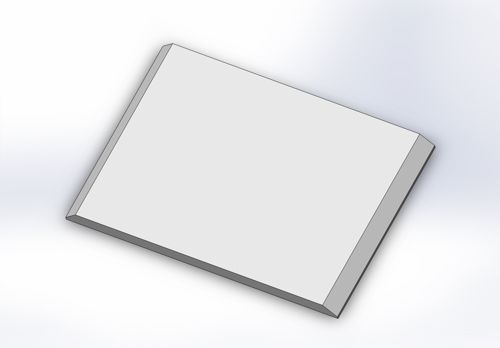

The Basic Dovetail is made of either aluminum or steel.
It has 45 degree angles milled on two sides to slide into your heater head.
The only way to mount a die to a basic dovetail is with Heat Tape.
See Mounting a die with Heat Tape.
