Dovetail with Hot Plate Chase

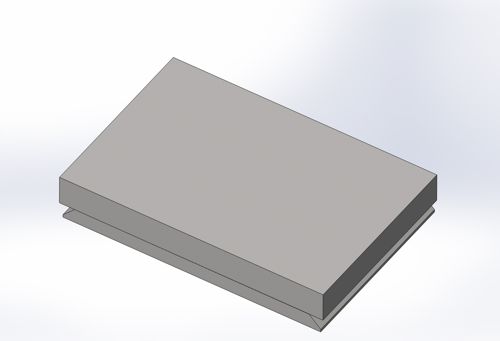

Dovetail with Chase
The Dovetail with Hot Plate Chase is used to expand the print area of your machine.
 The Hot Plate Chase mounts to a dovetail that fits your machine.
The Chase can expand the print area of your machine by about 3/4 of an inch per side
Dies can be mounted to the Hot Plate Chase by Heat Tape Only
See Mounting a die with Heat Tape.
